Executive Summary

In September 2025, Ransom-ISAC was brought in by Crystal Intelligence to investigate a cryptocurrency and data theft attempt via a private weaponised GitHub repository. What initially appeared to be a standard phishing campaign, quickly evolved into something far more sophisticated—a multi-layered attack leveraging novel blockchain-based command-and-control infrastructure and cross-platform malware designed to compromise development environments at scale.

Part 1 of this series delves into the sophisticated nature of a potentially attributed DPRK campaign where novel tradecraft such as Cross-Chain TxDataHiding techniques combined with the subsequent creation of a takedown-proof Command and control (C2) infrastructure. Part2 continues with a holistic analysis of the core malicious payloads with a complete view into the entire kill chain.

Part 3 aims to expand on the findings from parts 1 and 2 with a focus on the infrastructure leveraged by the threat actor during the campaign which can support attribution during the later stages. Through the understanding of the operational infrastructure, we aim to uncover other related clusters through our analysis, using infrastructure fingerprinting and wider open-source intelligence in order to explore potentially related campaigns.

For Part 3 of this investigation, Ransom-ISAC collaborated with Bridewell to conduct the comprehensive infrastructure analysis and attribution assessment detailed in this report. Bridewell's expertise in threat infrastructure tracking and OPSEC analysis was instrumental in developing the infrastructure fingerprints and cluster analysis presented here. We extend our sincere thanks to the Bridewell team for their invaluable contributions to this research effort and their commitment to advancing the cybersecurity community's understanding of sophisticated threat actor infrastructure.

It is worth noting that as efforts are made to reduce bias while correlating our infrastructure findings with what is known from parts 1 and 2, any attribution made during this part is kept independent to the previous parts. Only where correlation is required, the relevant connections are retrieved and built upon. With all infrastructure tracking engagements, no prior attribution assessments influence our analysis in order to deliver an unbiased, independent evaluation.

Should you have any information that can potentially support or refute our analysis, please feel free to reach out to us at Ransom-ISAC. As and where assumptions or estimates are made to fill the gaps in our analysis, they have been stated clearly so that the reader is aware.

Infrastructure Analysis

This section will explore the adversary infrastructure in detail to provide insights into some of the Operational Security (OPSEC) measures taken by the adversary during the intrusion to impair attribution. We shall start with a recap of the main types of infrastructure found in the previous part and the known IP addresses.

Intrusion C2 Channels

There are primarily two types of C2 channels previously identified based on the type of C2 mechanism and the different payloads distributed. The Python dropper communicating on a HTTP API C2 channel over port 27017 and the Loader/RAT communicating over both HTTP API and socket.io channels on C2 ports 27017 and 443 respectively. The two types of C2 channel are as follows:

• HTTP API: http://[server]:27017
• Command Socket: http://[server]:443 (WebSocket via socket.io)

These C2 channels are also responsible for hosting payloads found during the various stages of the infection chain in addition to the conventional C2 capabilities such as remote commands execution and data exfiltration.

Note: For the purpose of our analysis, it is not required to treat the infrastructure differently based on the payloads since the two types of channels are sufficient for building infrastructure fingerprints. For more information on the implementation of the C2 channels by the malware, please check out part 2.

Analysis from parts 1 and 2 identified 4 unique C2 IP addresses discovered either, directly through tracing the complex infection chain or, configured as alternate/fallback hard-coded values in the malicious payloads acting as a fail safe mechanism in the event the primary channel is not able to establish connection with patient zero.

C2 Components

Note: There is discrepancy in the first seen dates for the listed C2s and those identified later as an outcome of the infrastructure fingerprinting efforts. This is due to the interval of the C2 services and ports crawled by the internet scanners which has inadvertently created blind spots. The earliest date from the selection of internet scanners was considered, these should be treated as estimates only.

The section is divided into two sub-sections based on the type of leveraged C2 channel.

Dropper C2: HTTP API

Let's begin our analysis with the IP address 23.27.20[.]143 - identified during the intrusion. The reason to select this IP address is it's prevalence in the previously conducted intrusion analysis and the standalone focus on HTTP API as a C2 channel. We will explore socket.io as a C2 at a later point.

• Source IP address: 23.27.20[.]143
• Source Location: United Kingdom
• Primary C2 Port: 27017
• Alternate C2 Port: 5432
• Status: ACTIVE
• First C2 Configuration Seen: 6th August 2025

Through the use of internet scanners, the following HTTP header configuration was identified and associated with the source IP address.

HTTP/1.1 404 Not Found
Access-Control-Allow-Origin: *
Cache-Control: no-store, no-cache, must-revalidate
Connection: keep-alive
Content-Type: text/html; charset=utf-8
Date: Fri, 31 Oct 2025 00:23:35 GMT
Expires: Sat, 26 Jul 1997 05:00:00 GMT
Keep-Alive: timeout=15,max=100
Last-Modified: Fri, 31 Oct 2025 00:23:35 GMT
Pragma: no-cache
Server: EmbedIO/3.5.2
Content-Length: 0

Note: The above header configuration was obtained using an internet scanner and is different from the HTTP response captured during the original intrusion analysis. The fundamental difference resides in the HTTP status code, content length and encoding that would have influenced the fingerprint creation.

One of the possible reasons behind this mismatch could be, how the operator had set up the infrastructure to improve their OPSEC and prevent the various internet scanners from crawling that would rely on default options, modules and/or user agents to probe the IP addresses.

Common HTTP API C2 Characteristics

With respect to IP address leveraging the HTTP API C2 channel, all four C2 IP addresses have the following characteristics in common:

1. HTTP Header Configuration

Server and version: EmbedIO/3.5.2

EmbedIO is a lightweight open-source web server by Unosquare which is available for users to download from the GitHub. The server is built for .NET Framework and .NET Core with the latest version 3.5.2 that released in November 2022. Some of the key features include:

• Cross-platform: tested on multiple OS and runtimes
• Extensible: Write your own modules
• Create REST APIs quickly with the out-of-the-box Web API module
• WebSockets support
• Create GUIs for Windows services or Linux daemons

The cross platform capability of the server is on par with the payloads designed for the intrusion. The modular and light weight nature along with the convenience of creating GUIs makes it a lucrative choice for an adversary. From an infrastructure tracking standpoint, currently, at the time of writing this, there are only 300 servers deployed in the wild with this specific version of EmbedIO which can be considered rare.

2. HTTP Header Setting - Expires Field

The value Expires: Sat, 26 Jul 1997 05:00:00 GMT in the HTTP header appears to stand out. The value is clearly older than today's date. The significance of using an Expires header that has a past value is an older (HTTP/1.0) method for controlling the cache. This is contradicting since the HTTP method above is HTTP/1.1. The more modern (HTTP/1.1) has a more effective way to prevent caching by using the Cache-Control header which is already being used in the above HTTP header with the correct parameters Cache-Control: no-store, no-cache, must-revalidate. If a modern browser sees both, it will obey Cache-Control and ignore Expires.

Additionally, the specific use of this exact date value is probably inspired from an older PHP documentation that referenced it as an example. Also, the day and date combination does not logically add up, the correct day is Monday for that date, not Saturday. There are roughly 20,000 servers with this date value, which is low and a vast majority of them use HTTP/1.1. This past date setting (even on the HTTP/1.1 method) is likely and deliberately set by the operator for backward compatibility to ensure that even very old clients or proxies that don't understand Cache-Control will still see the past Expires date and know not to cache the content.

3. HTTP Header Setting - Keep Alive

Keep-Alive: timeout=15,max=100 value in the HTTP header is set to ensure that victims always make a new request to the server when interacting with it. From an operator's perspective, it is defining the limits for the C2 beaconing time intervals opting for a persistent connection with the C2. The specific parameters are set to let the server know to only keep a connection open for a window of 15 seconds after the last response is sent.

If the client does not send a new request within that defined time frame, the server will close the connection to free up the resources. Also, the server will allow a maximum of 100 total requests to be sent over a single connection after which an existing connection is closed and a new one is required. At the time of writing this, 50,000 servers globally are configured with this setting.

4. Hosted Infrastructure

Autonomous System Number (ASN): AS149440

Organisation Name: Evoxt Enterprise

The organisation has a 3 year old autonomous system (AS) for its network infrastructure, which allows it to provision its own network routing. It also provides virtual machines, or Virtual Private Servers (VPS), with a focus on low-cost and high-performance options. The ASN is primarily hosting servers located in the US with global presence extending to Malaysia, Japan, UK, Hong Kong and Germany to name a few.

Threat actors often use such dedicated VPS to host their C2s giving them a more granular control over the infrastructure. It is also common for threat actors to spin up their infrastructure in the same region as the victims to avoid any network traffic from being dropped due to geo-blocking. In a later section ASN Overview, we will sift through wider open-source intelligence to share sightings of known malware and threat groups that have used this ASN in the past.

The operator's choice to select this ASN could also be based on the overall good reputation. While there is evidence of historic malicious activity associated with this ASN, in general, this ASN is not widely flagged as a malicious network due to the overall low spam activity (less than 1%) in addition to not being listed on major, widespread blacklists. Abuse databases also show very few reports, with most being several years old and having a low confidence of abuse.

5. Network Ports Used

The primary port used for C2 is the TCP port 27017 which is a default port used by MongoDB databases to establish connection with the clients. The same HTTP headers configuration was also found on a different TCP port 5432 which can be treated as an alternate port for C2 that is typically used for PostgreSQL databases.

At this point, Despite observing only two ports under the same IP address, the threat actor's apparent preference for database-designated ports is noteworthy, especially considering the targets are developers.

6. Common Services, Ports and Configs

By considering the services, their ports and broader configuration, we can determine consistency between the already identified C2 servers, by logging volatility of the services. Furthermore, these can be combined with other meta data such as First Seen and Last Seen dates (active status) for the servers to provide a better clustering criteria based on such service statistics.

Concept of Service Hibernation Score (SHS)

From the duration, the First Seen C2 configuration was recorded and up until the last seen date, the calculation is based on the number of unique services observed divided by the number of times they have been changed/updated, we can derive what is informally known as service hibernation score. The primary significance of the score is to broadly understand the consistency of services configured on the infrastructure which can help assess if the same operators are still using the infrastructure or not.

For instance, if a server during its active period (time interval between first and last seen dates) had 5 unique services which were altered a total of 15 times, the calculated score would be (5 divided by 15) 0.33. Higher the SHS score, more consistent the services are. It is also important to understand that the accuracy of the score itself is highly influenced by the scanning interval of those services since it relies on the frequency of the services changed/updated.

Note: Please see that the above C2 port is still referring to HTTP based API channel and not socket.io. We will cover socket.io separately to avoid any confusion and hence port 443 is ignored.

While it is not specifically known, it can also be assessed with low confidence that the operators are using RDP to remotely access their C2 server with an assumption that the victim C2 connection (HTTP based API channel) terminates at C2 server and thereby not used by operator workstations.

7. RDP TLS Certificate Common Name (CN)

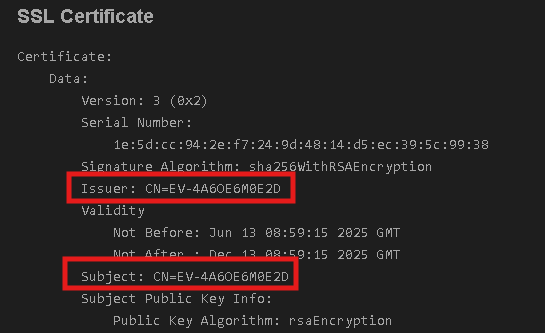

All IP addresses mentioned above have the issuer/subject CN of EV-4A6OE6M0E2D on their RDP TLS certificate. Currently, there are a 300 servers with the same CN.

Clustering Assessment Criteria

To recap, the following common factors were considered to split the resultant IP addresses obtained from the infrastructure fingerprint. The criteria is based on the following factors and further divided into low, medium and high confidence ratings. The factors are also listed in the increasing order of their significance:

• HTTP method and status code
• HTTP headers configuration
• Server and version used
• Hosted ASN
• Hosted C2 port
• Service hibernation score (SHS)
• RDP TLS certificate CN

Note: The confidence level is subject to change as we explore other relevant attributes in the subsequent sections such as C2 URL paths, communicating payloads and hard-coded values seen in the payloads.

Infrastructure Fingerprints

Upon consideration of the above attributes, an initial infrastructure fingerprint was constructed.

FINGERPRINT 1: server="EmbedIO" && header="Expires: Sat, 26 Jul 1997 05:00:00 GMT" && header="HTTP/1.1 404 Not Found" && header="Content-Length: 0"

Fingerprint 1 results in 11 unique IP addresses (inclusive of the 4 identified previously). These IP addresses are divided based on the clustering assessment criteria. For the purpose of attribution, all IP addresses were considered irrespective of their active status. The results are also classified as clusters based on common ASNs, and similar C2 ports (those seen associated with databases).

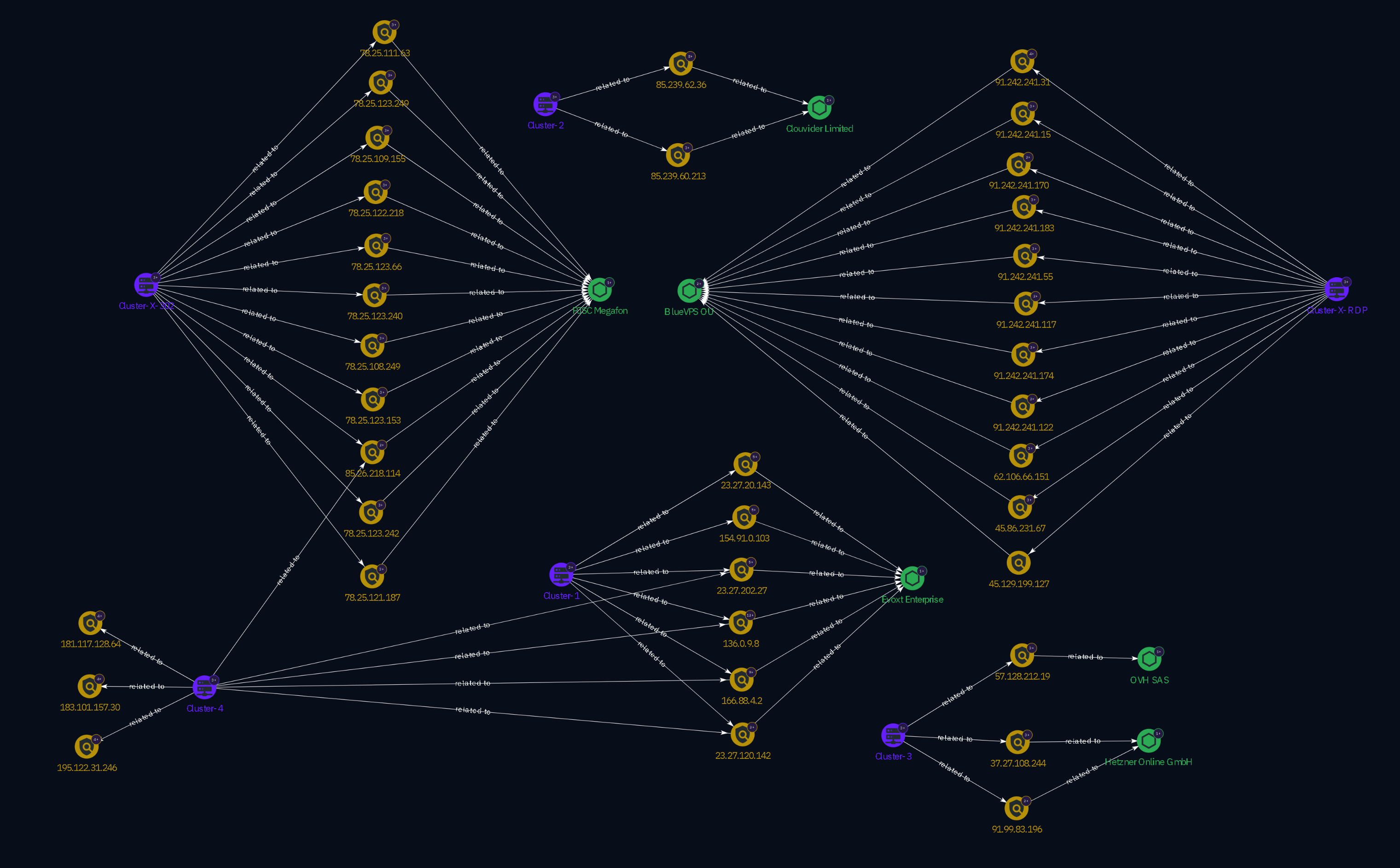

Results of Fingerprint 1:

Notable Observations

New C2 Ports

In addition to the discovered primary C2 ports, the list now includes, 27017, 5432, 1433, 8080 and 80. It is evident that the last two; 8080 and 80 are deviations from the initial assessment that the selected C2 ports were based on databases (it could also be possible that these ports only used for testing after which, they were migrated to the other ports). However, the inclusion of TCP port 1433 is able to compensate on the assessment made since it is the default port for Microsoft SQL servers.

ASN Groupings

• Cluster-1 follows the common pattern of hosted ASN linked to original 4 C2 IP addresses which instills confidence to this cluster
• Cluster-2 can be seen associated with a completely different ASN Clouvider Limited
• Cluster-3 is a grouping of two different ASNs (Hetzner and OVH) which were not seen in other clusters. Both ASNs are known for having a bad reputation for hosting malicious infrastructure

RDP TLS Certificate CN

While it is not mentioned in the table above, all IP addresses linked to Cluster-1 (not just the 4 original ones) have the same RDP TLS Certificate CN EV-4A6OE6M0E2D. Currently, there are over 1500 servers with this RDP TLS certificate with a vast majority belonging to Evoxt.

However, Cluster-2 has a common RDP TLS certificate CN pattern of PACKERP-XXXXXXX. Historically, there are only 17 IP addresses that have this CN pattern on RDP port 3389, each ending with a unique alphanumeric characters of fixed length. One the other hand, Cluster-3 has no RDP service linked to it.

Based on the recent last seen dates on the IP addresses, it might be worth tracking these under a separate cluster which may provide insights in the near future as to who is setting up such remote access. Of the 17 IP addresses, 9 were hosted in Russia and hosted on ASN-62005 BlueVPS OU. A vast majority of these are still active at the time of writing this.

Based on the common ASN (BlueVPS OU) and the RDP TLS certificate CN PACKERP-XXXXXXX, another cluster under the name Cluster-X-RDP was created to track operators setting up such remote access to the C2 servers in the near future.

Fingerprint 2: (asn="62005" || asn="49392") && cert="PACKERP-" && port="3389"

Cluster-X-RDP

Another pattern we observed is that many active IP addresses were hosted on a different ASN-49392 LLC Baxet prior to being hosted on BlueVPS. Based on that observed infrastructure pattern, it can be forecasted that IP address 91.242.241[.]55 with last seen date of June 2025 will be hosted on BlueVPS in the near future.

Hosting Timeline Analysis

Clusters 1,2 and 3 have a notable pattern pertaining to the choice of ASN selected for their operations. The selection of Evoxt Enterprise for Cluster 1 as the preferred ASN combined with other infrastructure attributes is unique enough to track the cluster.

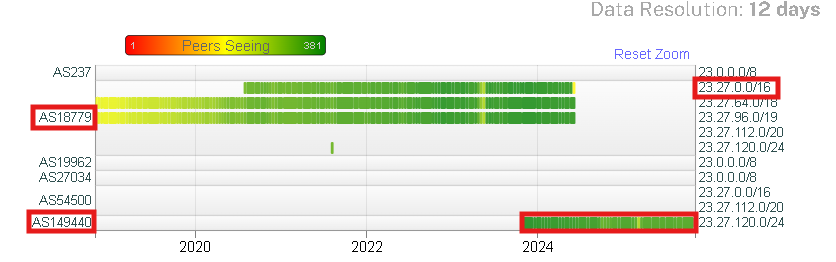

Prior to using that ASN, the set of IP addresses from cluster 1 were observed on a different ASN EDINHOSTING. To determine when the shift in the ASNs occurred, we leveraged the routing history for IP addresses in clusters 1,2 and 3.

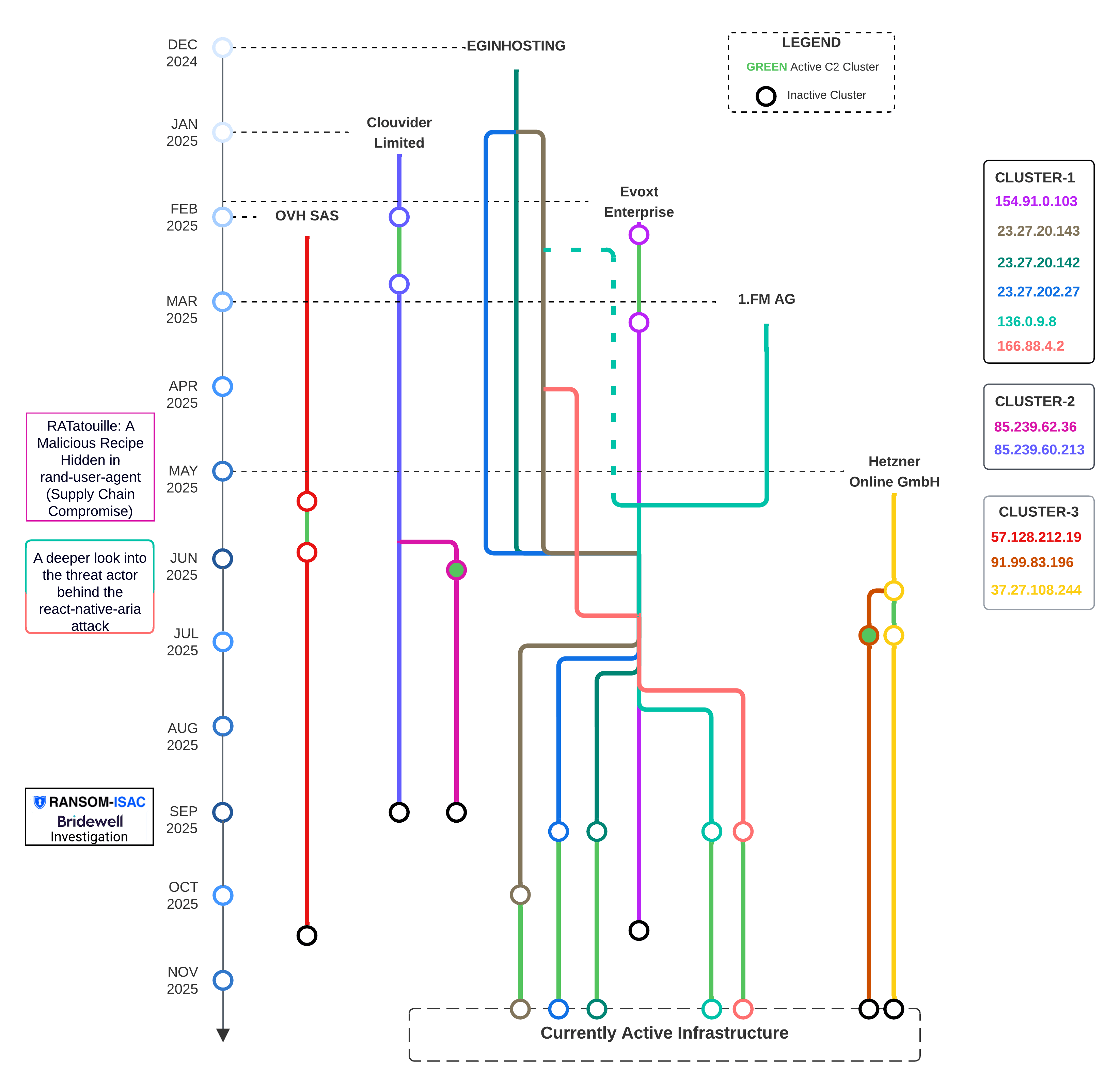

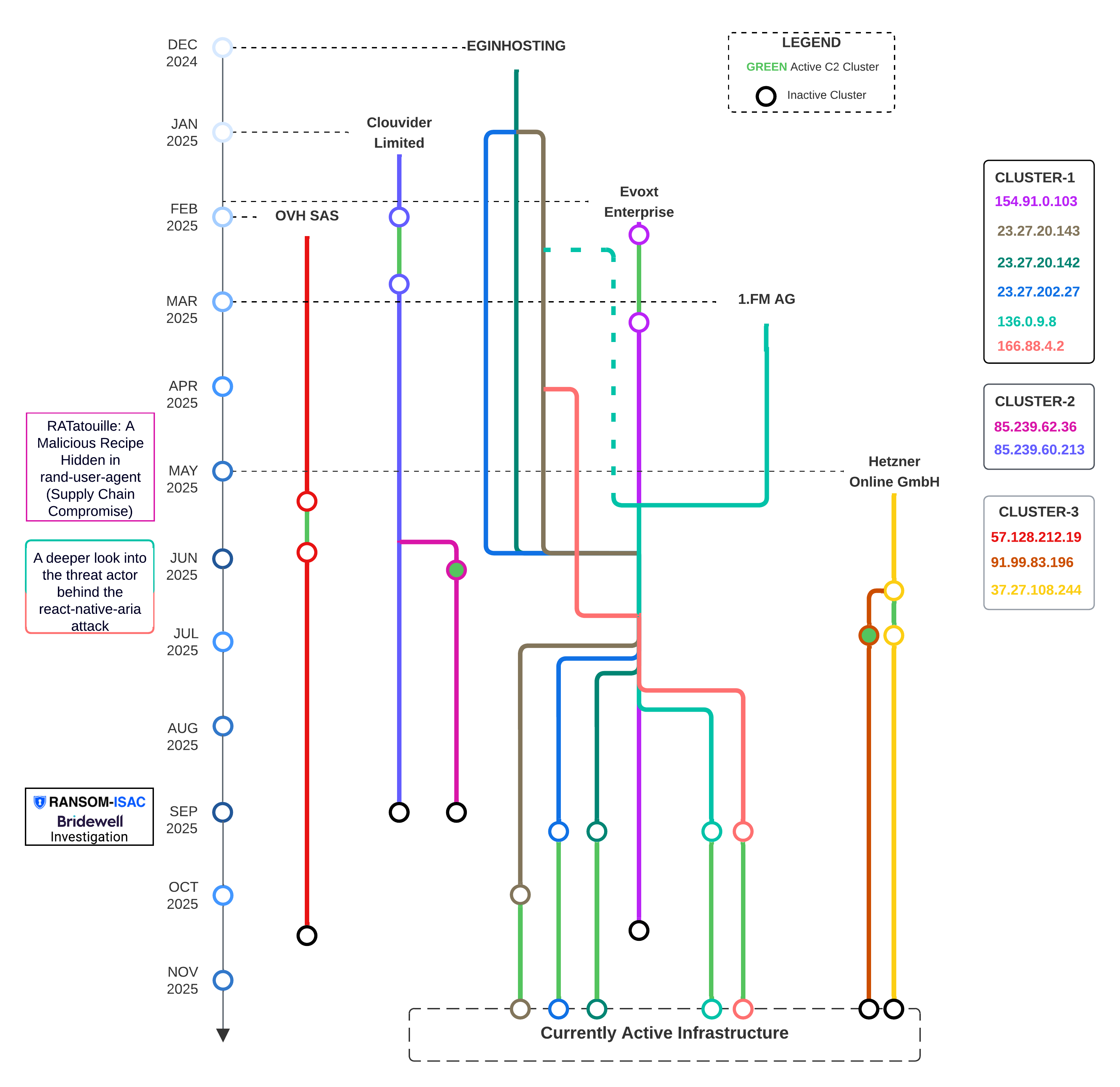

The diagram below may assist with better visualisation of the hosted infrastructure changes. The green lines and circles indicate the actual time frame when the infrastructure was observed exhibiting C2 properties. Green-filled circles were used to showcase a shorter time span in comparison to the green lines.

The left side of the diagram maps open-source reporting to the C2 indicators. We shall build upon those references in the later sections. From the diagram, it can be deduced that some cluster IP addresses have a longer active C2 behaviour while others such as 85.239.62[.]36 and 57.128.212[.]19 were short lived (green-filled circles). Also, IP addresses in cluster 1 have a consistent pattern of previously being hosted on a different ASN compared to the one observed during the intrusion.

Alternate HTTP Status Code: OPSEC 302 Redirection

Note: It is worth reiterating that we mainly considered the HTTP status 404 Not Found because this is what was observed on multiple internet scanners during the active timeline of the intrusion we were investigating.

However, during part 2 of the series (as mentioned under 302 Response (Easter Egg) section), while tracing the infection chain through different stages, an alternate HTTP 302 Found response was discovered where the perceived objective was to redirect unintended victims to a different location (in our scenario, to a specific GitHub link).

Threat actors implement such redirections to ensure network traffic is directed to those that it is intended for, in order to bypass potential analysis through automated bots, sandbox environments and other means where default parameters are used to contact adversary infrastructure.

This is yet another added method to improve adversary's OPSEC but also provides with an opportunity to fingerprint this unique redirection. The ports 8080 and 8094 leveraged for redirection could also be indicative of potential logging activity which can be generally assessed as the adversary conducting counter intelligence on those analysts attempting to track their kill chain.

The primary infrastructure fingerprint (clusters 1,2 and 3) can be modified slightly to accommodate this redirection mechanism used by the threat actors by simply changing the HTTP status code which also gives rise to a new Cluster-X-302 that results in 11 unique IP addresses, all based in Russia and under the same ASN PJSC Megafon.

Although, all 11 IP addresses originating from Cluster-X-302 are historic (not actively seen in 2025), these IP addresses could have been part of previously set up infrastructure that was probably used during the early stages and then disposed. We are likely to not see this cluster in the future. It is still worth recording this cluster for when we look into wider OSINT to check for any potential indicator overlap despite the cluster likely burnt and never to be used again.

Fingerprint 3: server="EmbedIO/3.5.2" && banner="HTTP/1.1 302 Found Expires: Sat, 26 Jul 1997 05:00:00 GMT"

Key Characteristics

• OPSEC: HTTP 302 Redirect
• Hosted ports: 8080, 8094
• Location: Russia, hosted on ASN 31213, PJSC Megafon
• Attributes: server, keep-alive date, content length and expiry date is same as clusters 1,2 and 3

Other Metadata

First Seen X-302 IP address: 6th Nov 2024

Last Seen X-302 IP address: 31st Dec 2024

Eagle Portal

Cluster-X-302

Currently, only 85.239.60[.]213 from Cluster-2 overlaps with activity timeline for this cluster. Also, for all IP addresses listed above, specifically on ports 8080 and 8094 (where the redirects were found), we also identified a web page what appears to be a login page with a Russian title "Орлан 2.0 (веб-интерфейс)" which translates to Orlan 2.0 (web interface). All login pages have the same JavaScript likely used to track web cookies for the login page. Currently, the exact significance of Orlan 2.0 is not known.

NOTE: The js_md5 value is 736dd2e77c190d2eb418338f49dda10e

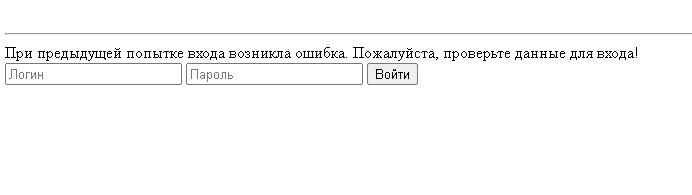

Below is the view of the HTML content, without rendering images, other CSS element:

Note: It can be assessed that the naming convention for the login page could have possibly be inspired from an upgraded strike version of the Orlan-10 able to carry four high-explosive fragmentation projectiles was reportedly used in the 2022 Russian invasion of Ukraine which could potentially hint towards pro-Russian stance.

According to the Oryx website, at least 208 Orlan-10, 19 Orlan-20, and 16 Orlan-30 have been shot down as of February 12 2025, including by a UK-supplied Martlet missile. A version called Moskit is used for EW. However, this assessment should be considered low confidence at best due to lack of direct evidence supporting it.

Note: Орлан (or Orlan) directly translates to 'eagle' in English.

A plausible hypothesis with moderate-to-high confidence is that the "Орлан 2.0 (веб-интерфейс)" login pages observed across Cluster-X-302 infrastructure represent legitimate licensed deployments of Orlan Security's DCAP system (https://orlan-security.ru) being operationally employed by DPRK threat actors to systematically prioritise and optimise large-scale data exfiltration operations.

Given the DPRK attribution and the actor's established modus operandi focussed on data collection, DPRK operators may be deploying legitimate Orlan:DCAP licences on compromised victim networks to automate the identification of high-value data targets. Rather than manually searching through terabytes of victim data, the DCAP system would automatically scan and classify all unstructured data across compromised file servers, identify files containing intellectual property, financial records, trade secrets, and source code, and generate prioritised target lists showing which files are most sensitive based on content analysis using Orlan's built-in neural networks and pattern matching technologies. This would enable DPRK actors to maximise intelligence and financial value whilst minimising bandwidth consumption and detection risk—directly supporting known operational priorities including cryptocurrency exchange data theft, intellectual property exfiltration for state economic advancement, and financial fraud operations.

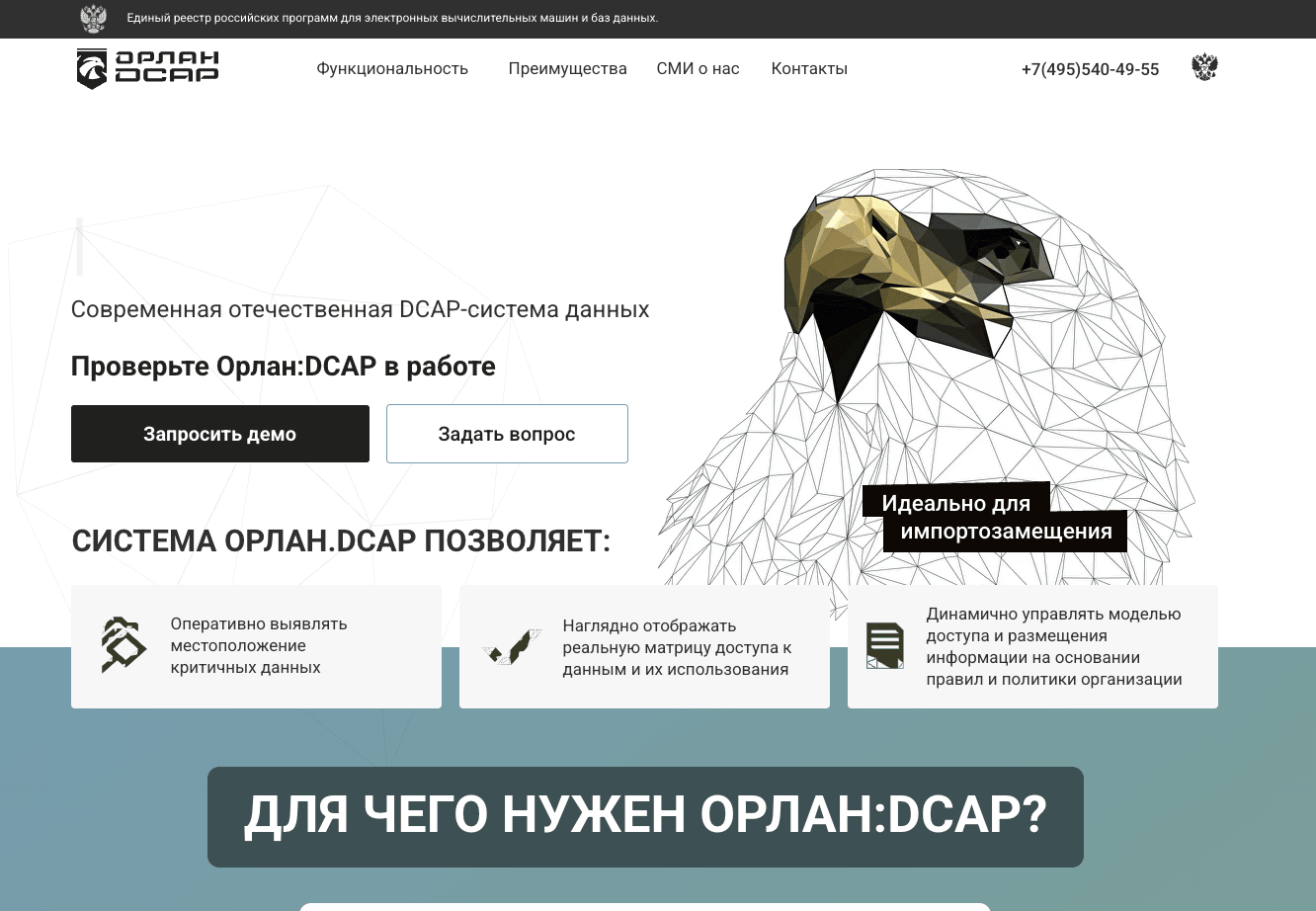

Source: https://orlan-security.ru/

DCAP stands for Data-Centric Audit and Protection - a security system that automatically discovers, classifies, and monitors unstructured data (files, emails, documents) across an organisation to identify where sensitive information is stored, who can access it, and what they're doing with it. DCAPs appear to be a hybrid of Data Loss Prevention (DLP) and Asset Inventory, popular within Russia.

Rather than manually searching through terabytes of victim data, the DCAP system would automatically scan and classify all unstructured data across compromised file servers, identify files containing intellectual property, financial records, trade secrets, and source code, and generate prioritised target lists showing which files are most sensitive based on content analysis using Orlan's built-in neural networks and pattern matching technologies.

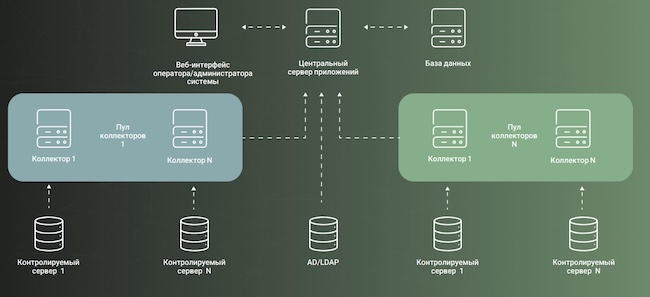

The architecture diagram of Orlan:DCAP shows (in Russian):

Source: https://www.anti-malware.ru/analytics/Market_Analysis/DCAP-DAG-2025#part67

Components:

• Веб-интерфейс оператора/администратора системы = Web interface for operator/administrator of the system (top left - the login page from above)
• Центральный сервер приложения = Central application server (top center)
• База данных = Database (top right)
• Пул коллекторов = Pool of collectors (the agents - shown in boxes labeled "Коллектор 1" and "Коллектор N")
• Контролируемый сервер = Controlled/monitored server (bottom - showing multiple servers being monitored)
• AD/LDAP = Active Directory/LDAP (center bottom)

The operational workflow would involve: initial compromise of target organisations, deployment of legitimate Orlan:DCAP agents (which appear as authorised security software and evade detection), automated scanning and classification of the victim's entire data repository, DPRK operators accessing the centralised web interfaces (observed on ports 8080/8094) to review classification results, and executing targeted exfiltration focussing on pre-identified sensitive data.

ASN Analysis and Wider OSINT

The ASN of choice for primary infrastructure (clusters 1,2 and 3) observed during the intrusion is Evoxt Enterprise (ASN: AS149440). This section aims to correlate any available open-source intelligence surrounding the usage of this ASN with any known malware or threat actors in addition to sharing external references where such documented intrusions/campaigns have been observed.

The IP address ranges were enumerated via the ASNs and then used to extract sightings into known reporting. Where possible, validation checks were conducted to ensure that the IP addresses actually belonged to the ASN when it was referenced in public reports.

Key Observations:

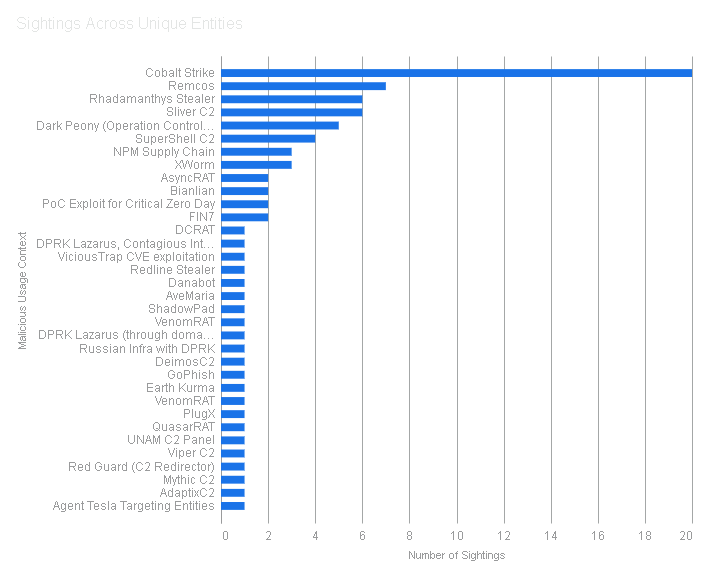

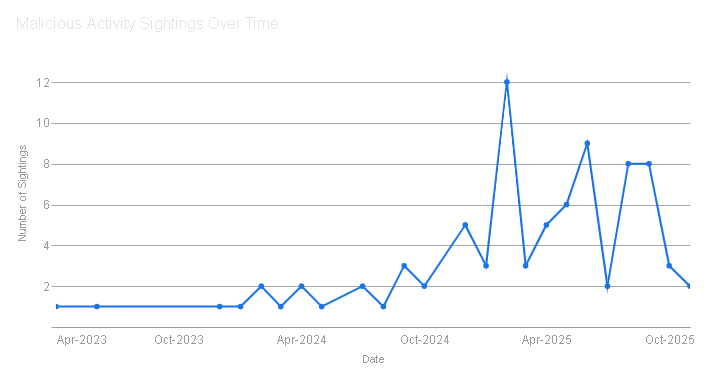

A total of 84 unique sightings of malware and known threat groups were identified using this ASN over the last three years. The distribution is split between Offensive Security Tools (OST), commodity malware, custom malware used by nation states, CVEs exploitation and other reported campaigns.

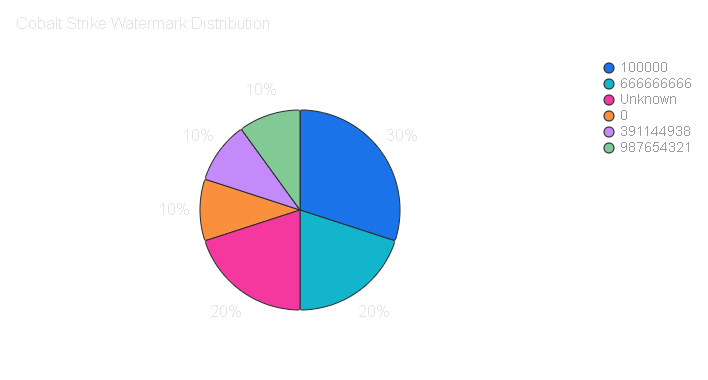

Majority of the sightings were for Cobalt Strike C2 framework spanning across different Cobalt Strike Watermarks.

• 0 - The most common watermark, widely associated with cracked versions of Cobalt Strike
• 100000 - No attribution to known groups or operators
• 666666666 - A fixed value often associated with pirated copies
• 987654321 - A fixed value often associated with pirated copies
• 391144938 - Observed in reporting related to various Chinese nation state groups, such as Viper's Nest

Known Threat Groups

_V-Selected C2: SocketIO

So far we have discussed the HTTP API C2 channel (also known as the Dropper C2 from part 2 of the series), in this section we shall explore and build upon the secondary C2 infrastructure leveraging WebSocket via socket.io (also known as the _V-selected C2 from part 2).

It is also worth mentioning that there are some overlapping properties between the two C2 mechanisms. Hence, an attempt is made to cover only those aspects of socket.io C2 that were not previously mentioned in order to develop some unique insights into the utilised infrastructure.

Out of the 4 original IP addresses found during the intrusion analysis, 3 of them qualify as socket.io C2 on TCP port 443.

• 23.27.202[.]27
• 136.0.9[.]8
• 166.88.4[.]2

HTTP Headers

Revisiting the internet scanners and probing those HTTP response headers that are related to port 443, the following HTTP headers were identified during the C2 activity timeline:

HTTP/1.1 404 Not Found
Content-Security-Policy: default-src 'none'
X-Content-Type-Options: nosniff
Content-Type: text/html; charset=utf-8
Content-Length: 139
Date: REDACTED
Connection: keep-alive
Keep-Alive: timeout=5

The above headers on their own are not enough to create an infrastructure fingerprint. However, a couple of anomalies were recognised that may assist in an improved development of the fingerprint.

Infrastructure Fingerprint

While conventionally TCP port 443 is for HTTPS protocol, HTTP is being used for the C2 based on the absence of SSL certificate. By combining conventional HTTPS ports (such as port 443) with the listed specific headers in addition to checking for absence of SSL certificate, the following fingerprint was developed:

Fingerprint 4: "HTTP/1.1 404 Not Found Content-Security-Policy: default-src 'none' X-Content-Type-Options: nosniff Content-Type: text/html; charset=utf-8 Content-Length: 139 Date: " "Connection: keep-alive Keep-Alive: timeout=5" has_ssl:false port:443 !tag:cloud

The newly formed Cluster-4 provides total of 18 IP addresses which were reduced down to 8 unique IP addresses by excluding those IP addressed that were hosted on cloud.

Additionally, half of resultant IP addresses had Error as their HTML title while the other half did not. It was decided to avoid using a filter based on HTML title in order to capture a broader set of results that can be used to check for indicator overlap with external reporting.

Alternatively, the above fingerprint can be made broader to capture more IP addresses while increasing risk of false positives. This can be done by including other ports that could implement HTTPS but typically don't. For example, adding the alternate port for HTTPS, port 8443 would have significantly increased the number of results.

Cluster-4

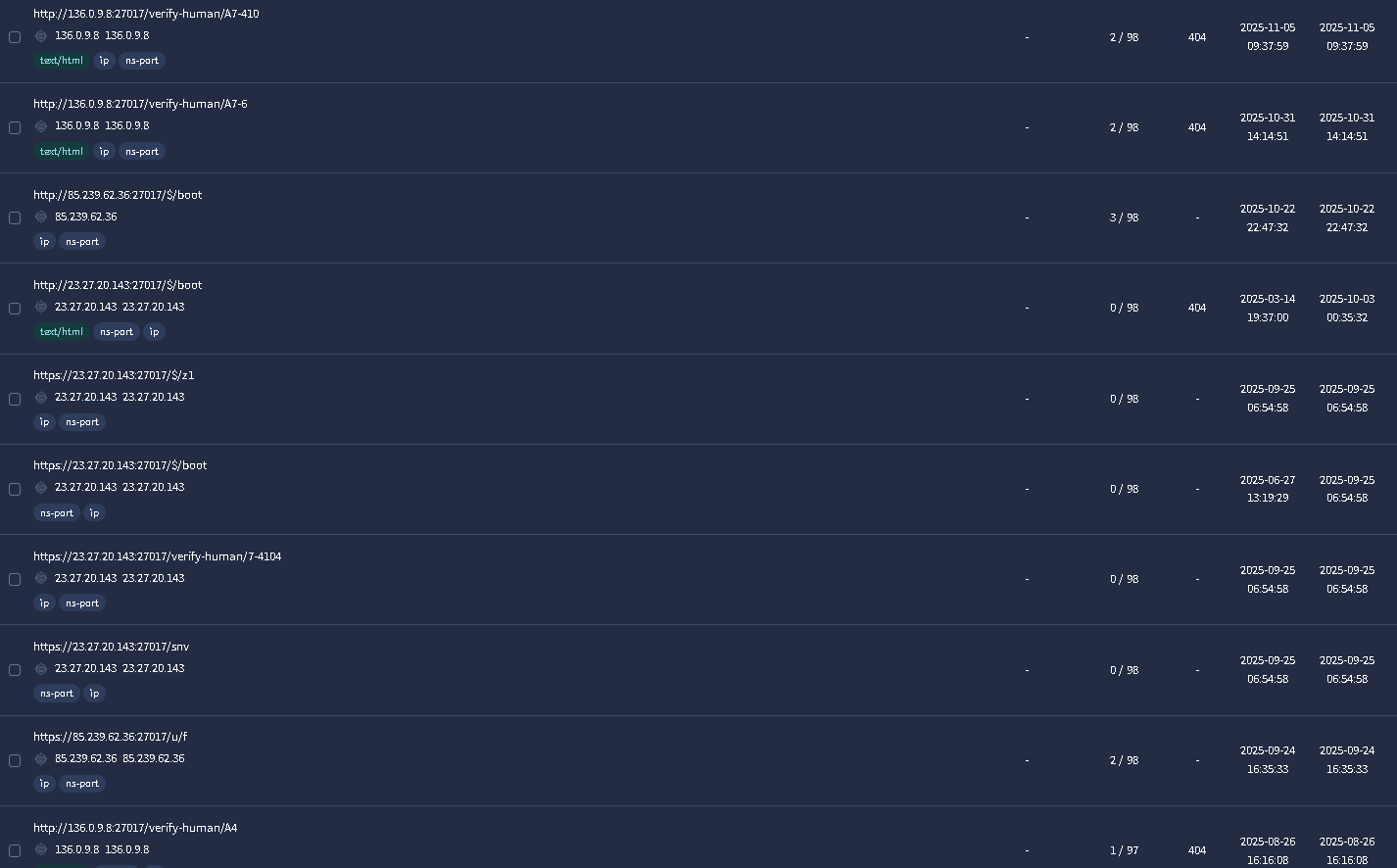

C2 URL paths

Both, the dropper and _V-Select C2s have the following URL paths:

HTTP API: http://[server]:27017

• /verify-human/[version] - Logging/telemetry
• /u/f - File upload endpoint
• /snv - endpoint name snv
• /$/boot - Python dropper
• /$/z1 - Python Stealer

Command Socket: http://[server]:443 (WebSocket via socket.io)

• /socket.io/

Socket.io URLs

Full socket.io URL Structure: http://[server_ip]:TCP_port/socket.io/?EIO=4&transport=polling&t=[0-9a-z]{8}

• TCP_Port - port number, in our case, it is set to 443 (also port 3306 was seen on a different IP address) for the _V-Selected C2s
• EIO - Engine,IO version number which is equal to 4, the latest version of the protocol
• transport - The supported transport mechanism that is set to polling state, the other alternative state is Websocket
• t - Socket.io implements cache busting with a timestamp parameter in the query string. If you assign timestampParam a value of ts then the key for the timestamp would be ts, it defaults to t if no value is assigned.

There is also a sid (Session ID) parameter that is mandatory for socket.io connections only after the session is established. Hence, if and only the server accepts connection, it will then respond with an open packet that contains this sid parameter embedded inside the JSON-encoded payload. The sid is required on every polling request except the very first one.

Here is a breakdown on the steps taken to establish a socket.io connection:

1. Initial Handshake: Client sends a request to server with defined EIO and transport parameters
2. Server Response: After receiving the handshake, server responds and creates a new session including the population of the sid.
3. All subsequent polling: Must now include the sid received from server after the initial handshake. Failure in appending the sid will result in a HTTP 400 error.

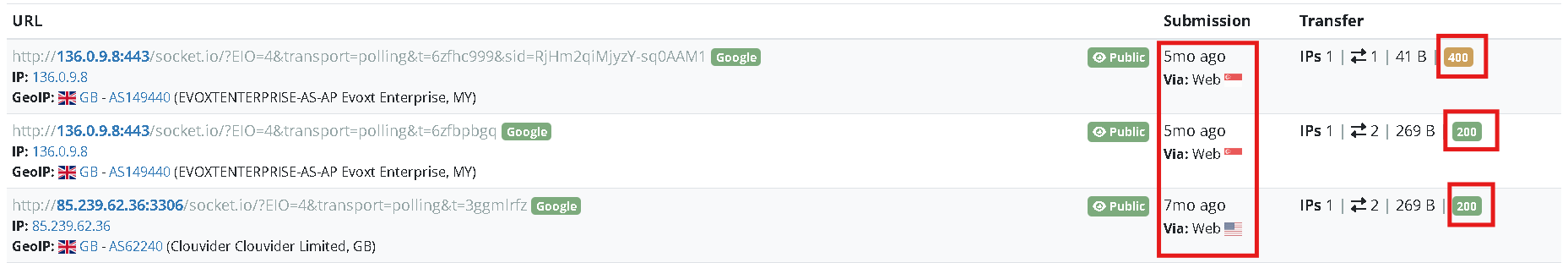

The common characteristics from the URL structure were leveraged (with inclusion of port 3306) to enumerate URL paths matching the criteria.

Search query (In-scope Ports): (page.url:":443" OR page.url:":3306") AND page.url:"/socket.io/?EIO=4&transport=polling"

Based on the results, only 136.0.9[.]8 (Cluster-1) was identified on port 443 and 85.239.62[.]36 (Cluster-2) on port 3306.

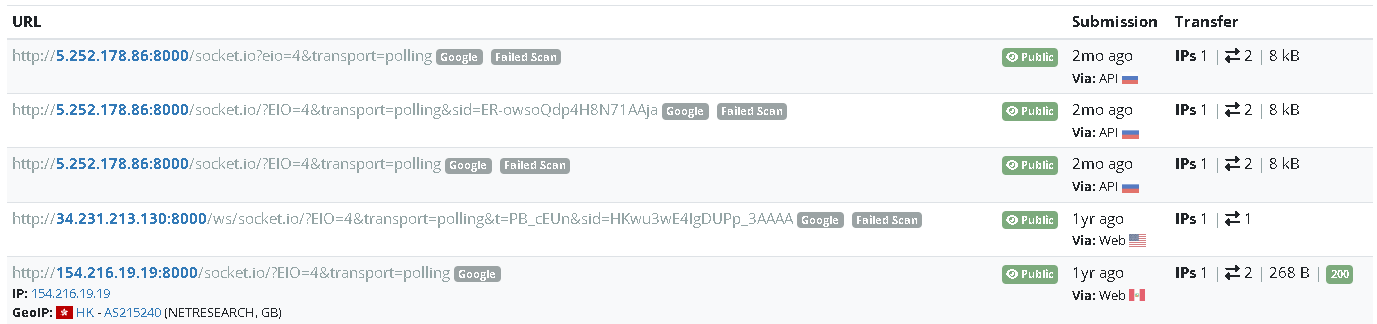

Other experimental ports such as 8000,8080, 8094, 1433 5432 and 27017 were also attempted which provided no significant results with the exception of new IP addresses 45.138.16[.]208 on port 8080 and 154.216.19[.]19 on port 8000.

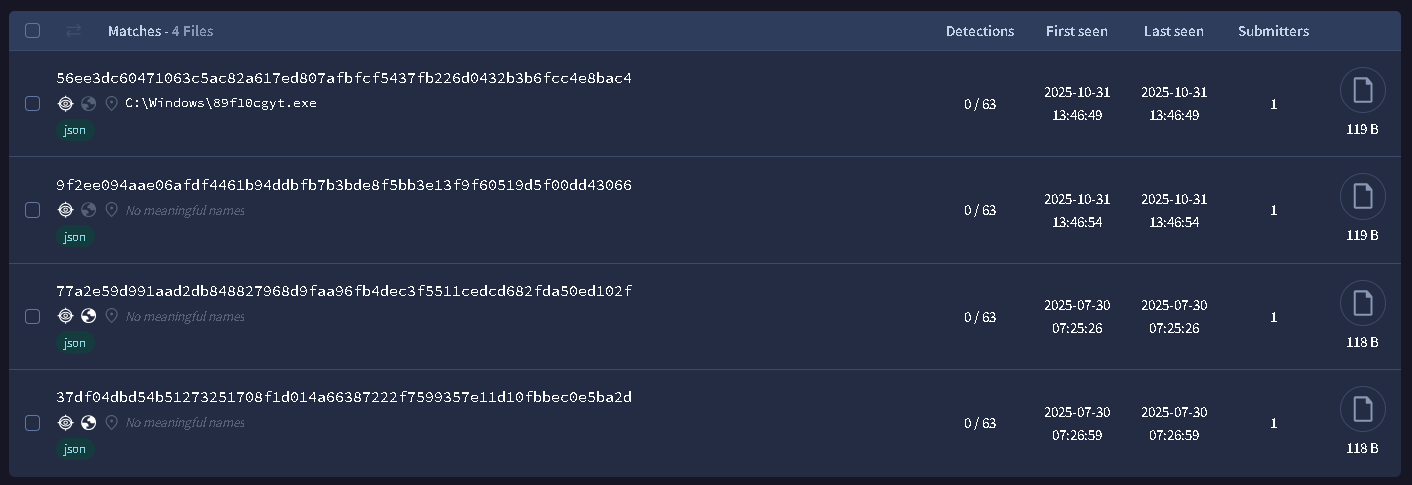

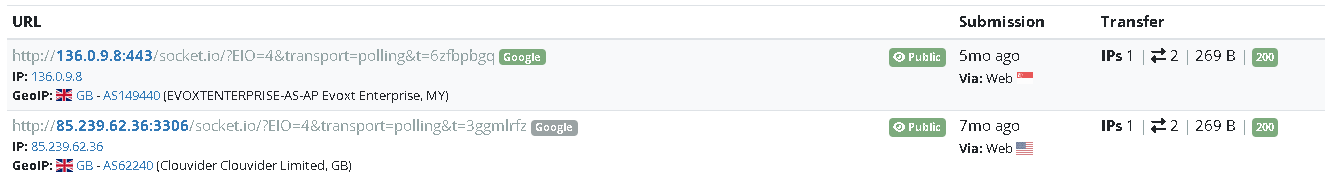

While investigating these two newly identified IP addresses, they appear to be outliers, although both are flagged as malicious on VirusTotal. Nevertheless, they will be useful to check for indicator overlap at a later point.

As seen in the above snippet, there are primarily two HTTP responses from the C2 servers.

HTTP Status 200:

hxxp://136.0.9[.]8[:]443/socket.io/?EIO=4&transport=polling&t=
<head><meta name="color-scheme" content="light dark"></head><body><pre style="word-wrap: break-word; white-space: pre-wrap;">0{"sid":"MGy81qf5krq0sJA0AAI5","upgrades":["websocket"],"pingInterval":25000,"pingTimeout":60000,"maxPayload":10000000}</pre></body>

hxxp://85.239.62[.]36[:]3306/socket.io/?EIO=4&transport=polling&t=
<head><meta name="color-scheme" content="light dark"></head><body><pre style="word-wrap: break-word; white-space: pre-wrap;">0{"sid":"qUGGniX8EH05h-GZAGBQ","upgrades":["websocket"],"pingInterval":25000,"pingTimeout":60000,"maxPayload":10000000}</pre></body>

Breakdown of the parameters:

• "sid": "xxxxxxxxxxxxxxxxxxxx"
  • This is the Session ID we discussed. The server has just generated this unique ID for the client. Your client must now include this sid in all future requests for this session.
• "upgrades": ["websocket"]
  • This is the server telling the client, it is currently using HTTP polling, but can support upgrading the connection to websocket.
  • A Socket.IO client will see this and immediately try to establish a new, faster, more efficient WebSocket connection.
• "pingInterval": 25000
  • This is the heartbeat interval in milliseconds. The server will send a "ping" packet to the client every 25 seconds to make sure it's still alive.
• "pingTimeout": 60000
  • This is the timeout in milliseconds. If the client doesn't respond to a "ping" with a "pong" packet within 60 seconds, the server will assume the client has disconnected and will close the session.
• "maxPayload": 10000000
  • This is the maximum size of a data packet (in bytes) that the server will accept (10,000,000 bytes, or ~10 MB).

HTTP Status 400:
<head><meta name="color-scheme" content="light dark"><meta charset="utf-8"></head><body><pre>{"code":1,"message":"Session ID unknown"}</pre><div class="json-formatter-container"></div></body>

An alternate hunting opportunity would have been to check the DOM for the specific values of pingInterval, pingTimeout and maxPayload which was tested and yields the same results. The Document Object Model (DOM) is essentially an API for HTML and XML documents that is responsible for defining elements as objects, and created as a tree of objects when a page loads.

Search query (DOM Content): text.content:"pingInterval\":25000" AND text.content:"pingTimeout\":60000" AND text.content:"maxPayload\":10000000"

Search query (JSON Response): content:{3a 32 35 30 30 30 2c 22 70 69 6e 67 54 69 6d 65 6f 75 74 22 3a 36 30 30 30 30 2c 22 6d 61 78 50 61 79 6c 6f 61 64 22 3a 31 30 30 30 30 30 30 30}

The below are SHA256 hashes of the JSON responses extracted from the successful HTTP responses from the servers:

• 56ee3dc60471063c5ac82a617ed807afbfcf5437fb226d0432b3b6fcc4e8bac4
• 9f2ee094aae06afdf4461b94ddbfb7b3bde8f5bb3e13f9f60519d5f00dd43066
• 77a2e59d991aad2db848827968d9faa96fb4dec3f5511cedcd682fda50ed102f
• 37df04dbd54b51273251708f1d014a66387222f7599357e11d10fbbec0e5ba2d

A new IP address 23.131.92[.]195 was identified that was observed interacting with the bottom two SHA256 hashes listed above. It does not match the URL structure and is using HTTPS instead of the HTTP ones observed earlier and hence is another outlier. There are other broader hunting opportunities where we can simply check for the wider URL patterns and then filter on those IP addresses with HTTP status codes 200 and 400.

Search query (Extended Ports): (page.url:":8000" OR page.url:":8080") AND page.url:"/socket.io/?EIO=4&transport=polling"

The three newly discovered IP addresses from HTTP 200 status code are all low confidence in terms of lacking relevance to the socket.io C2s:

45.138.16[.]208

154.216.19[.]19

23.131.92[.]195

Note: 45.138.16[.]208 and 23.131.92[.]195 were identified on VirusTotal since they were not scanned through urlscan.io.

There were also URLs which had failed scanned status, these are low-confidence and are listed below:

5.252.178[.]86 HTTP socket on port 8000

34.231.213[.]130 HTTP socket on port 8000

For the 400 code, the following were identified (only the newly discovered ones are mentioned):

• 191.96.53[.]163 HTTP based socket.io on port 5000
• 34.250.221[.]219 HTTPS based socket.io

Other urlscan.io queries:

Search query (HTTP Status 200): page.url:"/socket.io/?EIO=4&transport=polling" AND page.status:200

Search query (HTTP Status 400): page.url:"/socket.io/?EIO=4&transport=polling" AND page.status:400

Note: Both search queries require filtering on IP addresses used in the URLs to filter down the raw results from the queries.

HTTP API URLs

• /verify-human/[version] - Logging/telemetry
• /u/f - File upload endpoint
• /snv - endpoint name snv
• /$/boot - Python dropper
• /$/z1 - Python Stealer

Search Query: entity:url url:"27017" (url:"/verify-human/" or url:"/u/f" or url:"/snv" or url:"/$/boot" or url:"/$/z1" )

Unique IP addresses 136.0.9.8,23.27.20.143,85.239.62.36 were identified which belong to clusters 1 and 2. A variation of the search query was tested to accommodate for the alternate C2 ports 5432, 1433 and 8080 where no results were found.

Communicating Payloads with Infrastructure

During part 2 of the series, we developed five YARA rules to track the core payloads observed during the intrusion. These rules are listed below for reference and are available on our GitHub.

• Actor_APT_DPRK_Unknown_MAL_Script_PY_Stealer_Unknown_Strings_1_1Oct25
• Actor_APT_DPRK_Unknown_MAL_Script_PY_Stealer_Unknown_Strings_2_Oct25
• Actor_APT_DPRK_Unknown_MAL_Script_JS_Loader_Unknown_Strings_Oct25
• Actor_APT_DPRK_Unknown_MAL_Script_JS_RAT_Unknown_Strings_Oct25
• Actor_APT_DPRK_Unknown_MAL_Indicators_Strings_Oct25

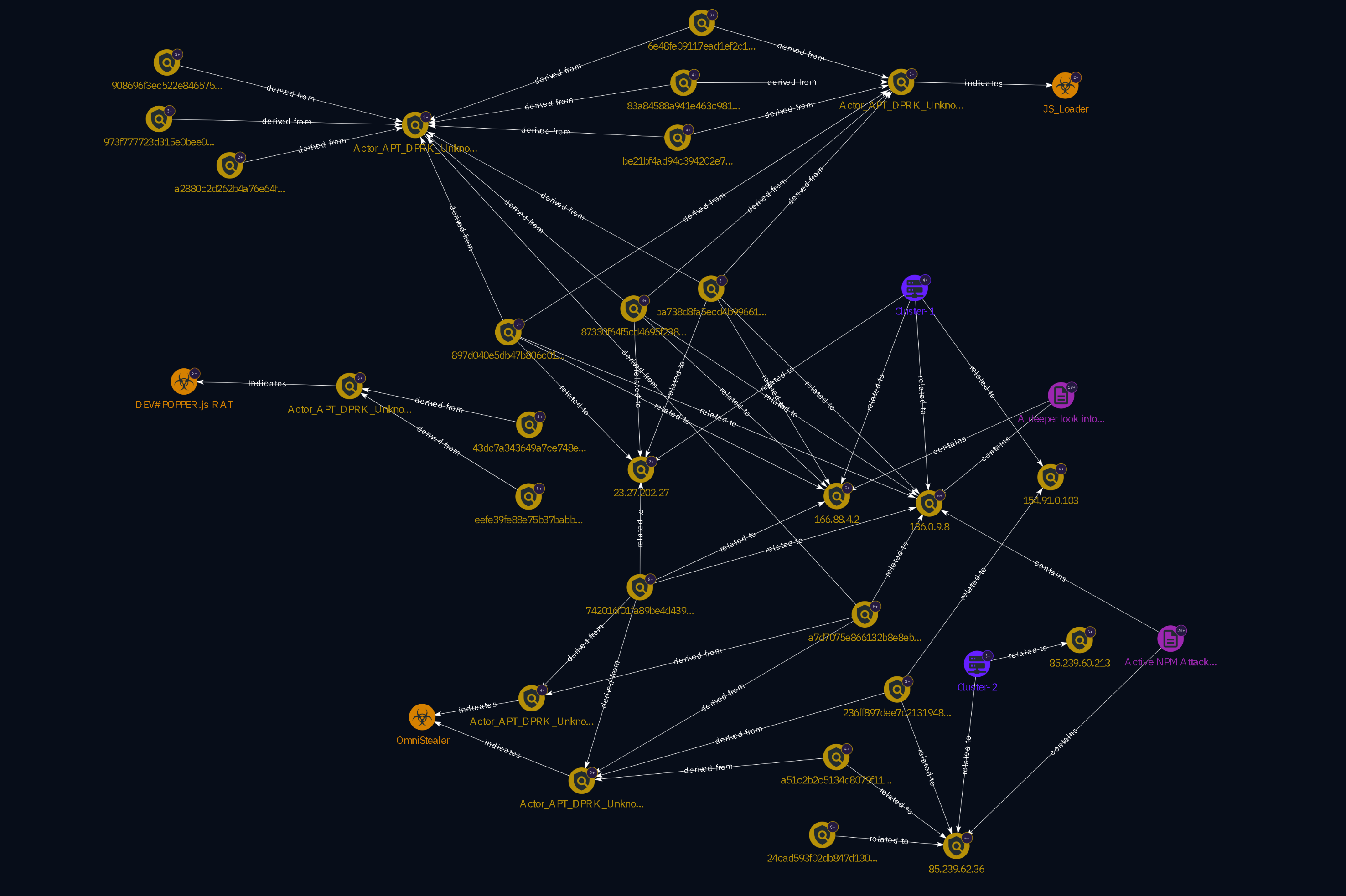

To better illustrate the relationships between the infrastructure clusters, payloads matching YARA and the rules themselves, please see the graph below.

Attribution

This section contains information that is used to summarise and conclude our assessment on attribution to the intrusion activity with respect to the infrastructure leveraged. Our findings from the intrusion and wider pivoting while building the clusters is complemented with the use of open-source reporting associated with our observed activity.

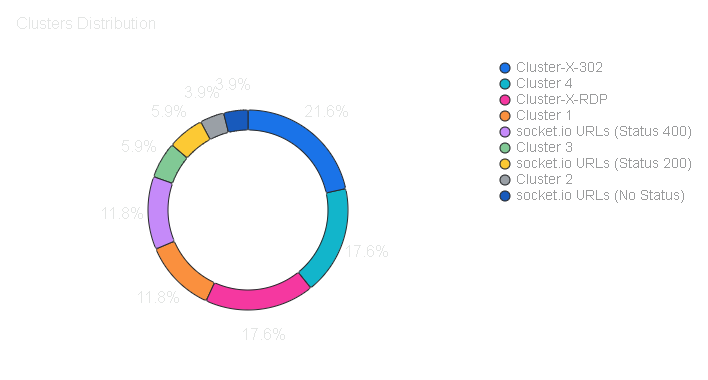

Clusters Overview

Key Indicators Overlap

All IP addresses from the defined clusters were used to search for any references in the past open-source reporting:

136.0.9[.]8, 166.88.4[.]2 and 85.239.62[.]36 were all mentioned in two separate blogs by Aikido who initially identified a campaign in May 2025 where threat actors compromised popular NPM packages. The observed initial access vector for the campaign was an NPM developer's token being compromised and then used to make malicious changes to NPM package GitHub repositories.

It is worth mentioning that between the two blogs shared by Aikido, they referenced three IP addresses and there is a positive match on all three with what was seen during cluster developments which can suggest that the intrusion we observed is likely related to the campaign covered by Aikido. They also commented on 85.239.62[.]36 around when it was potentially activated in Feb 2025 which is insightful since it belongs to Cluster 2.

Aikido did not make attribution to known threat groups. However, they suspect on basis of the sophistication in the infection chain that it is likely a state-sponsored operation. Interestingly, based on the Russian hosting ASN observed on 85.239.62[.]36, they are leaning towards a Russian APT behind the operations which is also one of our stronger hypothesis.

Close Proximity Reporting

The following reports have been picked based on their closer proximity reporting interval that is in line with what we have seen with the intrusion timeline and were also selected based on the tradecraft described which we deemed is similar to the intrusion under consideration.

There are no obvious indicator overlaps with the reports discussed below. Hence, we have attempted to broaden our approach to look for other attributes that may support or refute our clusters.

Reiterating on what has been discussed during the initial sections, please see the factors that support the criteria for our assessment below:

• HTTP headers related to clusters 1, 2 and 3
• Resemblance with known infrastructure fingerprints
• Ports: Any preferred ports favouring databases
• socket.io HTTP 200 response parameters (maxPayload, pingInterval and pingTimeout)
• ASNs: Consistent selection of ASNs seen for cluster 1 primarily which is inclusive of historic networks hosting the IP addresses for cluster 1 - Evoxt Enterprise, LLC and EGINHOSTING
• Domain Density: Domains hosted per a single IP address, this value should be low since we did not see a lot of domains (except the dropper C2 which had 22 domains) being hosted on the same IP address
• URL paths: any IP addresses containing the list of URL paths for the HTTP API and socket.io C2s
• Russian Remote Access: Evidence of RDP activity originating from Russian servers

Note: In part 3, we are mainly focusing on the infrastructure discussed in the reports and are not going to comment on the payloads found in the infection chain. Limited views on the payloads found during the intrusion and the additional samples that were found using our YARA rules have been shared in the Communicating payloads section.

There is some considerable overlap between sources 1, 2 and 3 based on the TTPs, targeting and payloads used.

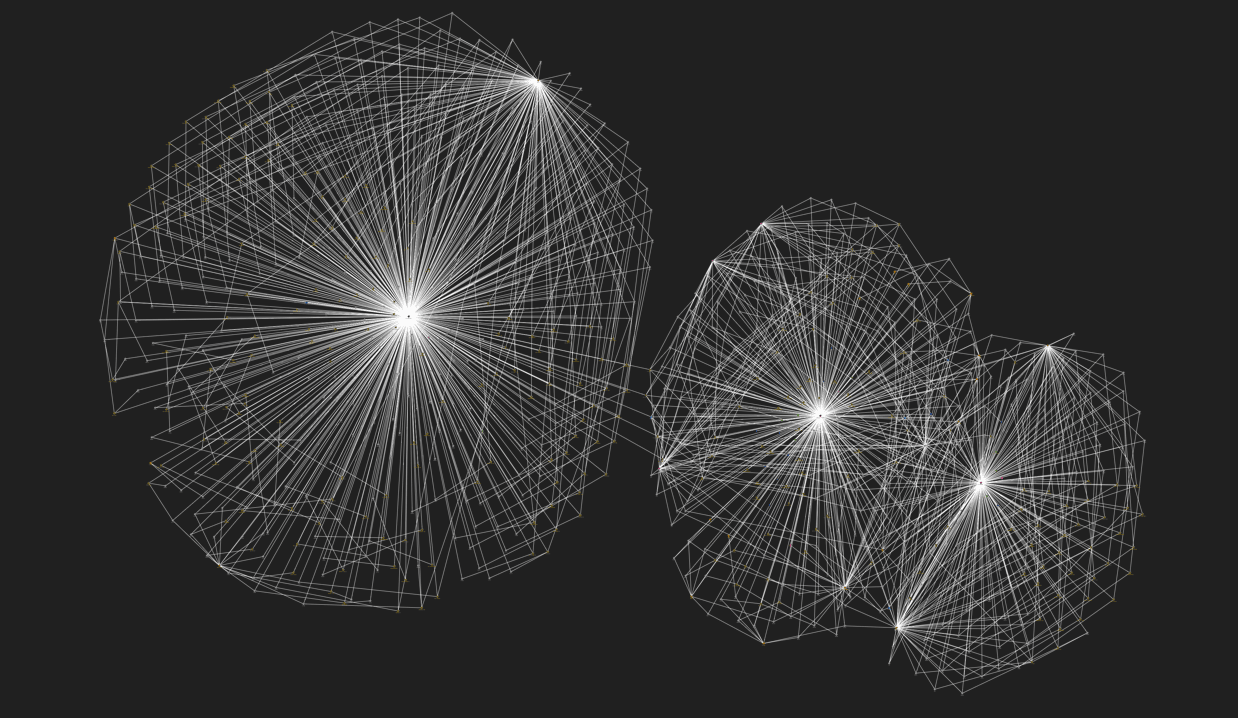

Note: Graph produced by OpenCTI STIX

Source1: Cisco Talos - Beavertail and Ottercookie

Observations

None of the ports from the C2 URLs mentioned in the source correspond to databases. The URL paths also largely remain different. While there is no overlap with the ASNs, we can still see one ASN ROUTERHOSTING used more frequently compared to others. Domain density is also high compared to what was observed with our clusters. Only one IP address 144.172.96[.]35 was seen to have a shift in their hosting ASNs from PONYNET to ROUTERHOSTING.

There is nearly a perfect overlap between socket.io HTTP headers from the source and Cluster 4 for IP address 23.227.202[.]244 on port 1224 (which is the documented C2 port) with only the X-Powered-By: Express not matching. It is worth mentioning that there is a difference in the C2 port as well (port 443 instead of 1224).

HTTP/1.1 404 Not Found
Content-Length: 139
Access-Control-Allow-Origin: *
Content-Security-Policy: default-src 'none'
Content-Type: text/html; charset=utf-8
Date: Fri, 17 Oct 2025 08:57:59 GMT
X-Content-Type-Options: nosniff
X-Powered-By: Express

More specifically, one socket.io URL on 144.172.112[.]50 was spotted with the following value hxxp://144.172.112[.]50[:]6411/socket.io/?EIO=4&transport=polling&t=hbvxfknl, the paired port is a non-standard one that is not assigned to a known service. Upon inspecting the successful raw response, there was a discrepancy in the pingtimeout value equal to 20000 instead of 60000, other parameters maxPayload and pingInterval were the same. Hence, it was determined that the concerned IP address would not be considered as part of cluster 4.

Also, two IP addresses 138.201.50[.]5 and 135.181.123[.]177 are hosted on Hetzner Online GmbH which is the same ASN as our cluster 3. However, upon further investigation, no conclusive evidence was found to establish a positive link.

Source2: Google (GTIG) - UNC5142 Leverages Etherhiding

Observations

The domain density demonstrated in this source is the highest out of all sources. Due to the domains leveraged as C2s, ports 80 and 443 were the primary C2 ports (which is a disconnect from ports used for databases). During examination of the relevant HTTP headers and banners for the IP addresses in the above table, there are no infrastructure attributes that are similar to any of the clusters we have created.

There is not a lot similarity in the hosting infrastructure but except for 138.201.207[.]116 which is hosted on Hetzner Online GmbH which is the same ASN as our cluster 3. Both, 83.217.208[.]130 and 80.64.30[.]238 are hosted in Russia with the latter also previously hosted on ASN LLC Baxet which was also one of the past ASNs observed for Cluster-X-RDP.

Source3: ESET - Deceptive Development

Observations

Domain Density is in sync with what is seen for the clusters, None of the listed IP addresses from the source have remotely similar C2 URL paths for both socket.io and HTTP API. Likewise, there is no overlap in the ASNs. Adding to this, the HTTP headers identified across the different IP addresses do not match any of the clusters.

There is a degree of consistency in regards to the selection of the same ASN STARK INDUSTRIES SOLUTIONS LTD which is well known for its bad reputation as a Bulletproof Hosting Provider (BHP). On the contrary, there is no consistency in the ports being used because they do not map to databases.

There appears to be discrepancy in the ASNs referenced in source report and those identified by VirusTotal. Upon retracing the routing history for the IP addresses, this shift in the hosted ASN from STARK INDUSTRIES SOLUTIONS LTD to WorkTitans B.V is quite recent (from 15th October 2025 onwards). This observation is further validated when cross-referencing the first seen dates for the IP addresses in the source report.

This shift in the ASNs is of significance as all the C2 IP addresses from the source reporting are currently hosted on WorkTitans B.V which is known as a medium-risk network. There may be other intermediatory ASNs prior to moving to WorkTitans B.V but the important point to note here is the shift in the ASNs and not the specific ASN itself.

There is a single instance of a Russian domain us.extip[.]ru that is hosted on IP address 103.35.190[.]170

Conclusion

The primary focus of part 3 was to closely analyse and develop fingerprints for the payload and C2 infrastructure sighted during the intrusion. Based on our current findings, we were able to develop and divide the infrastructure clusters with differing degrees of confidence.

Overall Assessment/Ransom-ISAC Views

Based on the clusters identified from intrusion analysis and wider pivoting, it is assessed with low to medium confidence that there are two distinct threat actors working with one another that are actively or passively involved in the intrusion. Their participation is based on their involvement during setting up the infrastructure used for the intrusion and then the subsequent usage of the infrastructure itself during the intrusion.

Based on the timeline, geolocation and the remote access facilitated by the operators prior to the intrusion, it can be assessed with low confidence that the pre-attack infrastructure is being facilitated in Russia to then later be used by a DPRK aligned threat cluster. Involvement of Russia in the earlier stages is based on the RDP TLS certificate PACKERP-XXXXXXXX that was initially discovered with IP addresses in Cluster-2 and later used to create Cluster-X-RDP.

Historic reporting has suggested that IP address blocks in Russia were used as egress nodes for cybercrime activities aligned with North Korea (Famous Chollima). Vast majority of ASNs linked to the IP addresses mentioned in the article are on Stark Industries while others include Evoxt Enterprise (ASN associated with Cluster-1) and Zapbytes Technologies.

While we have seen overlap in key indicators from clusters 1 and 2 with the campaign covered by Aikido, they did not make any attribution to known threat groups over the observed campaign. However, based on the indicator overlap, it can be assessed with moderate to high confidence that the intrusion we observed is likely part of the campaign despite it lacking attribution.

A plausible hypothesis that can be assessed with moderate-to-high confidence for the "Орлан 2.0 (веб-интерфейс)" login pages observed across Cluster-X-302 infrastructure represent legitimate licensed deployments of Orlan Security's DCAP system (https://orlan-security.ru) being operationally employed by DPRK threat actors to systematically prioritise and optimise large-scale data exfiltration operations.

Given the DPRK attribution and the actor's established modus operandi focused on data collection, DPRK operators may be deploying legitimate Orlan:DCAP licences on compromised victim networks to automate the identification of high-value data targets. This would enable DPRK actors to maximise intelligence and financial value whilst minimising bandwidth consumption and detection risk—directly supporting known operational priorities including cryptocurrency exchange data theft, intellectual property exfiltration for state economic advancement, and financial fraud operations.

At this point, there is not enough evidence as such to suggest attribution towards a known specific threat group and we shall continue to monitor the clusters in the near future to determine if connections exist to known threat groups and/or campaigns.

If you have any additional supporting information on the IP addresses listed in the clusters, please feel free to reach out to Ransom-ISAC at [email protected].

Part 4

Our next analysis will be covering dedicated blockchain infrastructure and cryptocurrency tracking. Through comprehensive blockchain analysis, we'll trace the flow of stolen funds across multiple chains and reveal the financial infrastructure underpinning this campaign. Such a siloed approach ensures that unintended biases are reduced to the best of our analytical abilities, providing an independent view of the threat actor's financial operations.

In Part 4, we'll expose the wallet networks, fund routing patterns, and laundering techniques used to monetise this sophisticated attack chain. From initial theft to final destination, discover how DPRK threat actors move and obfuscate stolen cryptocurrency at scale.

Acknowledgements

Ransom-ISAC extends sincere thanks to our collaborators at Bridewell and Crystal Intelligence for their invaluable contributions to this investigation. Special recognition goes to the Bridewell team for their expertise in infrastructure analysis and attribution assessment that formed the foundation of Part 3. We also wish to thank Crystal Intelligence for bringing this case to our attention and their continued partnership throughout the investigation. Finally, we're grateful to all individuals and organisations who have reached out requesting assistance or sharing intelligence—your collaboration strengthens our collective defense against sophisticated threat actors and advances the broader cybersecurity community's understanding of evolving threats.

Indicators of Compromise (IOCs)

1. ASN IOCs (High-Medium Degree of Confidence)

2. All Clusters IOCs (Low Degree of Confidence)

3. File Hashes (High Degree of Confidence)
